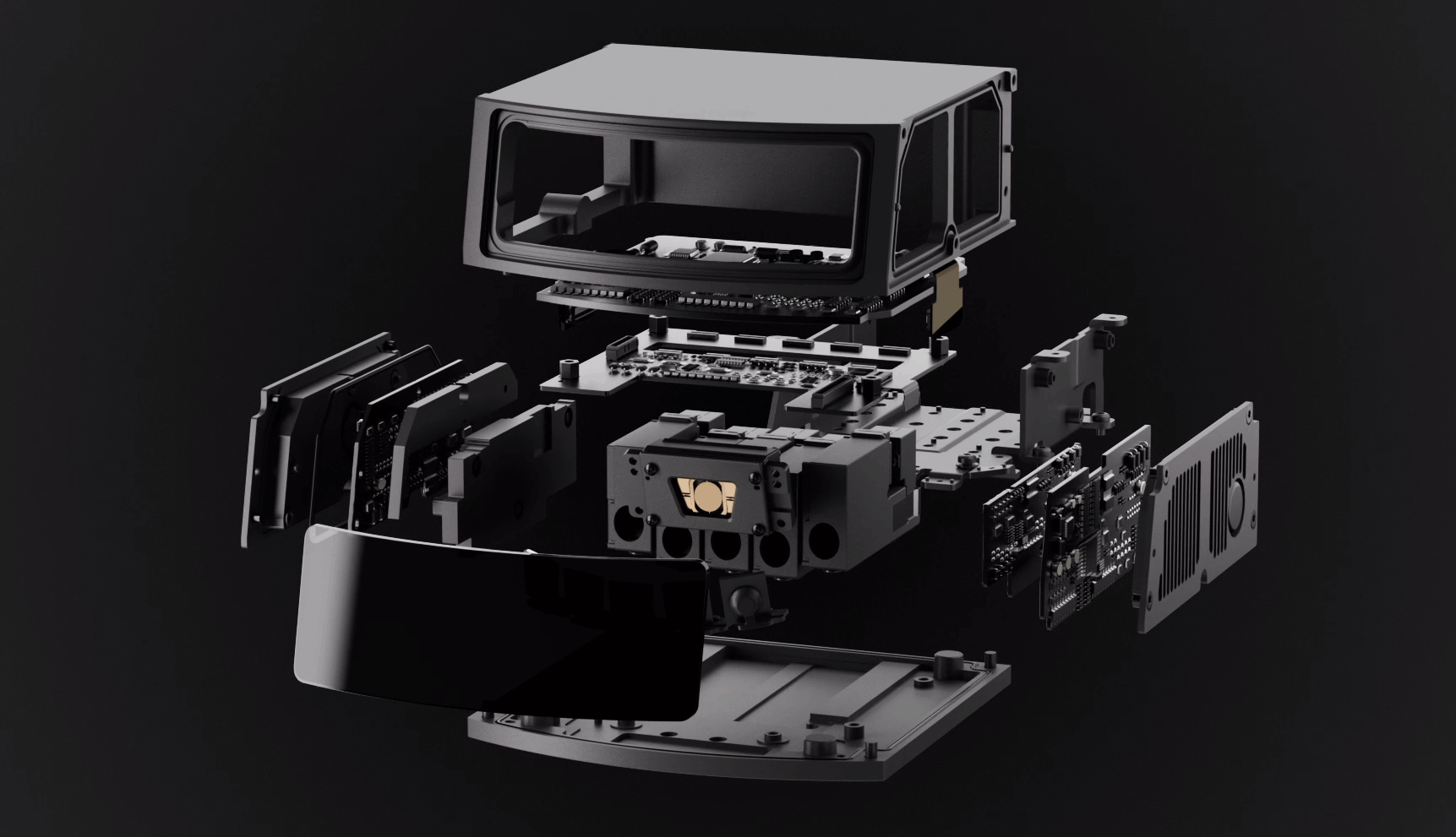

Outstanding Hardware Performance

125 Beam, 150m@10%, 15 FPS, 120°× 25° FOV

Built-in AI Perception
Obstacles Detection, Obstacles Classification, Dynamic Objects, Freespace Detection

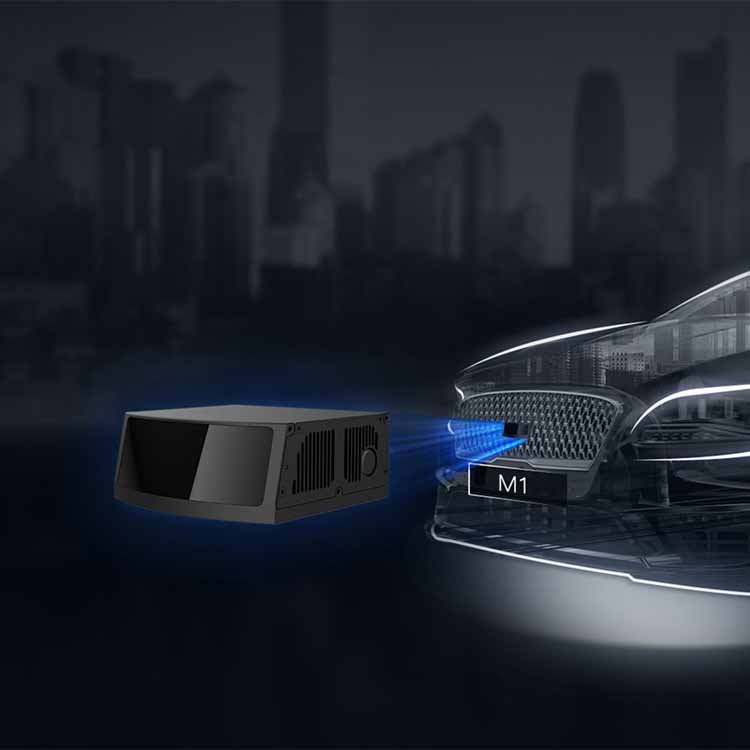

Deployment Recommendations

RS-LiDAR-M1 Blind Spot LiDAR

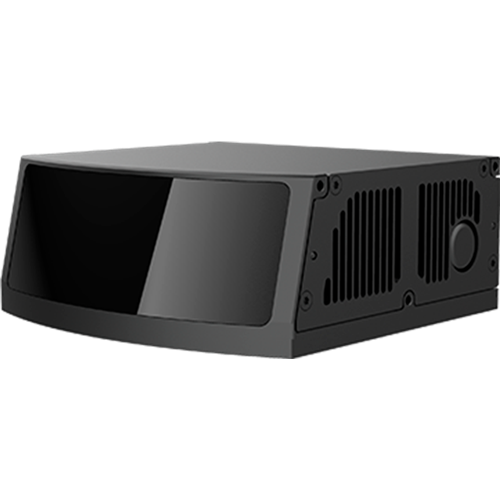

RS-LiDAR-M1

  • Wavelength: 905nm
  • Laser safety: Class1
  • Accuracy: Up to ±5cm
  • Range: 150m on 10% NIST
  • Vertical FOV: 25°(-12.5° ~ +12.5°)
  • Vertical angular resolution: 0.2º
  • Horizontal FOV: 120°(-60.0° ~ +60.0°)
  • Horizontal angular resolution: 0.2º
  • Refresh Rate: 15 Hz
  • Data rate: 1,125,000pts/s(single return)
  • Interface: 1000Mbps Ethernet
  • UDP Packet include: Spatial Coordinates, Intensity,
  • UDP Packet include: Timestamp, etc.
  • Operating Voltage: 9-32VDC
  • Power consumption: 25w
  • Protection Level: IP67
  • Operating temperature: -40°C ~ +65°C
  • Storage Temperature: -40°C ~ +105°C
  • Dimension: 120(L) x 110(W) x 50(H)
  • Weight: ~ 800g

RS-LiDAR-M1 Simple

  • Wavelength: 905nm
  • Laser safety: Class1
  • Accuracy: Up to ±5cm
  • Measurement Range: 180m(120m@10% NIST)
  • Blind spot: ≤1m
  • Vertical FOV: 25°(-12.5° ~ +12.5°)
  • Vertical angular resolution: 0.2° (average)
  • Horizontal FOV: 120°(-60.0° ~ +60.0°)
  • Horizontal angular resolution: 0.2° (average)
  • Refresh Rate: 15 Hz
  • Data rate: 1,125,000pts/s(single return)
  • Interface: 1000Mbps Ethernet
  • UDP Packet include: Spatial Coordinates, Intensity,
  • UDP Packet include: Timestamp, etc.
  • Operating Voltage: 9-36VDC
  • Power consumption: ~28w
  • Protection Level: IP67
  • Operating temperature: -20°C ~ +65°C
  • Storage Temperature: -40°C ~ +105°C
  • Dimension: 120(L) x 110(W) x 50(H)(Without mounting holes)
  • Weight: ~ 800g (Without dataline)
Download data sheets

RS-LiDAR-M1 comes in two versions:

M1 Simple version: Hardware-only, Output--point cloud rawdata

M1 Smart version: Build-in AI perception algorithms & IC chipset, Output--point cloud rawdata & perception result
